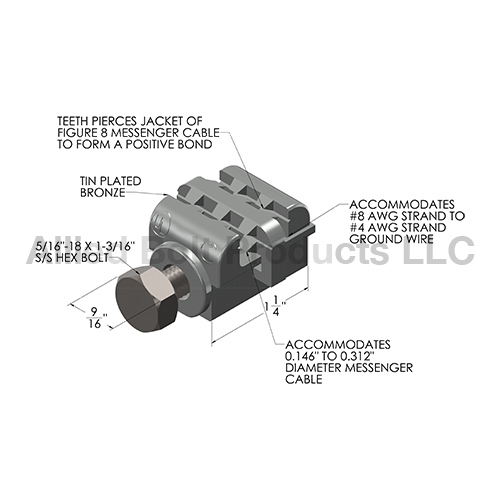

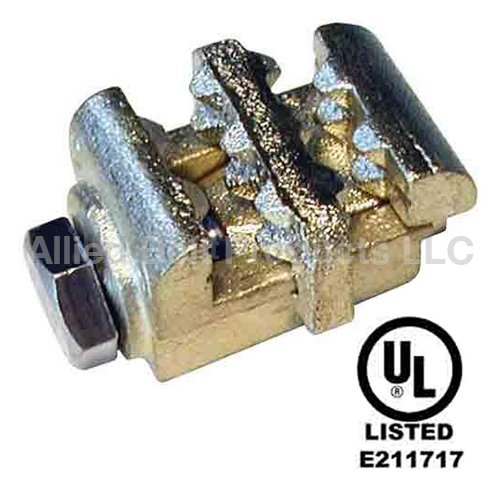

TYPE C GROUND CONNECTOR FOR MESSENGER CABLE

    • Used for connecting ground wire to the messenger strand of self-supporting cable. The teeth of the connector penetrate the insulation of the messenger strand to form a positive ground.
    • Each connector is provided with a 5/16-18 x 1" type 304 Stainless Steel hex bolt.
    • C Ground Connector accommodates messenger diameters of .146" to .312".
    • C Ground Connector accommodates ground conductors ranging from #8 STR AWG to #4 STR AWG.
    • Piercing teeth eliminate the need for wire stripping.
    • Connector manufactured from high strength bronze and tin plated to prevent the contact of dissimilar metals.
    • UL Listed under file number E211717.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
1025 TYPE C GROUND CONNECTOR FOR MESSENGER CABLE 50 4 44

schematic
