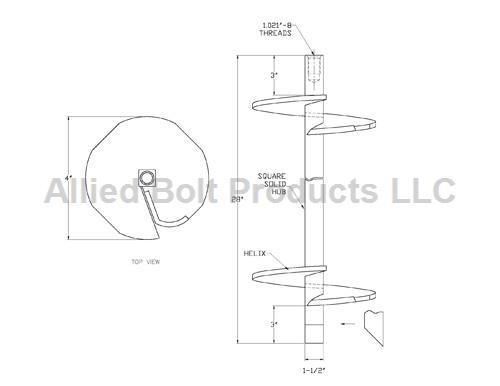

4" TWIN HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 7000LB FOR 3/4" AND 1" RODS

4" TWIN HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 7000LB FOR 3/4" AND 1" RODS + Zoom
Actual product appearance may vary.
4" TWIN HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 7000LB FOR 3/4" AND 1" RODS + Zoom
Actual product appearance may vary.


Allied Bolt Part # 3497
  • Installation is performed using a power digger. An anchor wrench fits over the anchor hub and a torque measurement device is required to determine proper installation.
  • Correct installation is achieved only when the anchor is installed using the appropriate torque for the particular soil and anchor type (see reference charts).
    Proper anchor selection depends on the type of soil and guying requirements.
  • Installation torque is usually measured using a device connected in series with the wrench, digger, and Kelley Bar during installation.
  • Anchors are painted with rust inhibiting blue paint after fabrication.
Download PDF
Request Quote
Email a Link to this Page


Part Number
Description
 Pkg Quantity
Pkgs Per Carton
Carton Weight
3497
4" TWIN HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 7000LB FOR 3/4" AND 1" RODS
50
1
0
