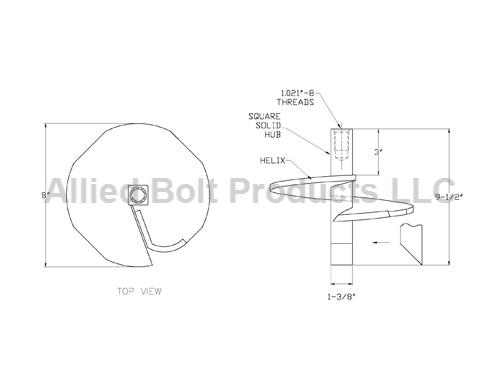

8" SINGLE HELIX POWER DRIVEN ANCHOR 1-3/8" HUB 4000LB FOR 3/4" & 1" RODS

8" SINGLE HELIX POWER DRIVEN ANCHOR 1-3/8" HUB 4000LB FOR 3/4" & 1" RODS + Zoom
Actual product appearance may vary.
8" SINGLE HELIX POWER DRIVEN ANCHOR 1-3/8" HUB 4000LB FOR 3/4" & 1" RODS + Zoom
Actual product appearance may vary.


Allied Bolt Part # 3404
  • Installation is performed using a power digger. An anchor wrench fits over the anchor hub and a torque measurement device is required to determine proper installation.
  • Correct installation is achieved only when the anchor is installed using the appropriate torque for the particular soil and anchor type (see reference charts).
  • Proper anchor selection depends on the type of soil and guying requirements.
  • Installation torque is usually measured using a device connected in series with the wrench, digger, and Kelley Bar during installation.
  • Anchors are painted with rust inhibiting blue paint after fabrication.
Download PDF
Request Quote
Email a Link to this Page


Part Number
Description
 Pkg Quantity
Pkgs Per Carton
Carton Weight
3404
8" SINGLE HELIX POWER DRIVEN ANCHOR 1-3/8" HUB 4000LB FOR 3/4" & 1" RODS
160
1
0
