• Allied Bolt Suggest Best Practices/installations notes:

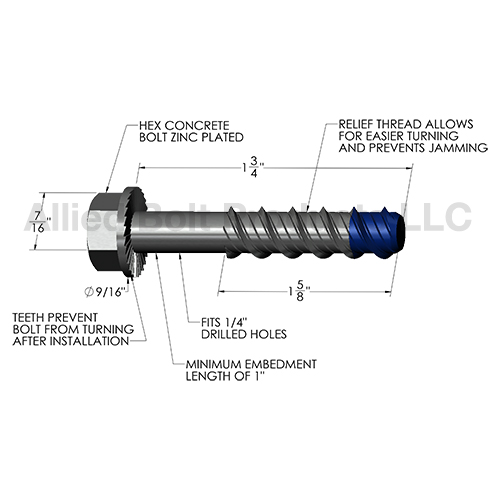

1/4" X 1-3/4" CONCRETE BOLT

    • Used for attaching heavy loads to concrete, brick, and hollow block.
    • Can be removed for adjustment, then re-driven into same hole.
    • The Concrete Bolt is designed to match standard fixture clearance holes that are 1/16" over anchor diameter to provide a secure fit.
    • Hex size is 7/16".
    • The washer diameter is 9/16".
    • Thread length is 1-5/8".
    • Minimum Embedment is 1".
    • Can be installed at shallower embedment depths than wedge or sleeve anchors reducing the chance of striking reinforcing bars or embedded cables.
    • Utilizes a specially designed relief thread formed in the body of the anchor which allows easy tightening at a reduced torque level and provides dust relief to prevent anchor from jamming.
    • A chamfered end easily centers anchor, and a 30° helix angle allows anchor to be tightened quickly. The controlled “screw-in” method is safer than using a hammer.
    • Diameter and length appear on the head of each anchor.
    • Zinc plated to meet ASTM Specification F1941.
    • Manufactured from AISI 1038 heat-treated steel.

Standard Packaging Information
