• Allied Bolt Suggest Best Practices/installations notes:

B GUY STRAP

    • B Guy Straps are used to provide a bracing surface on pole when installing Guy Bolts.
    • Accommodates 5/8” thru 1” Guy Bolts.
    • Installed with either two (2) ½” x 4 - ½” Drive Screws or one (1)  5/8” A Cable Suspension Bolt.
    • If the Guy Bolt is located within 16 inches of the top of the pole, the B Guy Strap should be reversed so the Drive Screws (or Suspension Bolt) is below the Guy Bolt.
    • Hot dip galvanized per ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
5183 B GUY STRAP 20 1 39

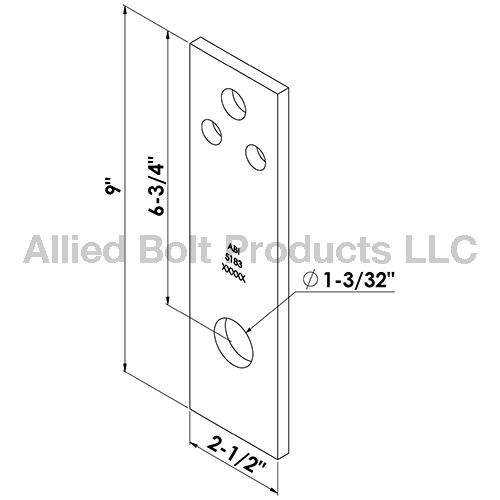

schematic
