• Allied Bolt Suggest Best Practices/installations notes:


    • Used in drop cable installations as an attachment to the strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.

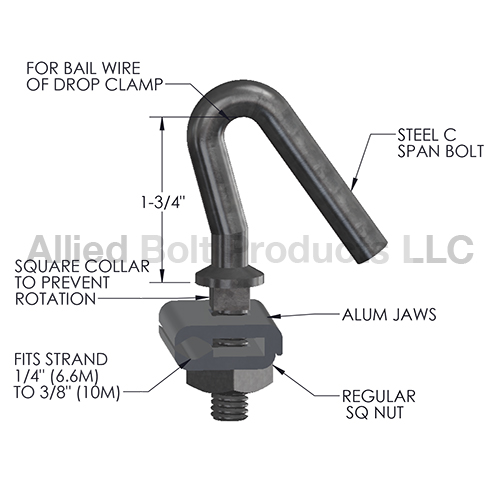

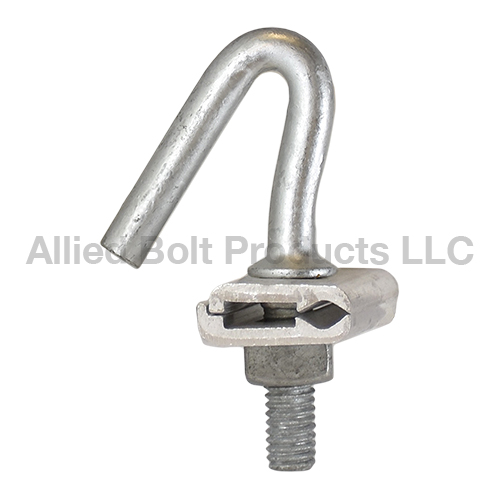

    • Consists of high strength Aluminum jaws, and a specially shaped bolt with square nut.
    • Jaws are extruded from 6063-T6 aluminum.
    • Bolt and nut are formed from Grade 2 steel.
    • Bolt and nut are hot dip galvanized to meet ASTM Specification A153.
    • Bolt is 3/8" diameter for additional strength.
    • Attaches to strand sizes ranging from 1/4" (6.6M) to 3/8" (10M).

Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
4044 C SPAN CLAMP 100 1 24
