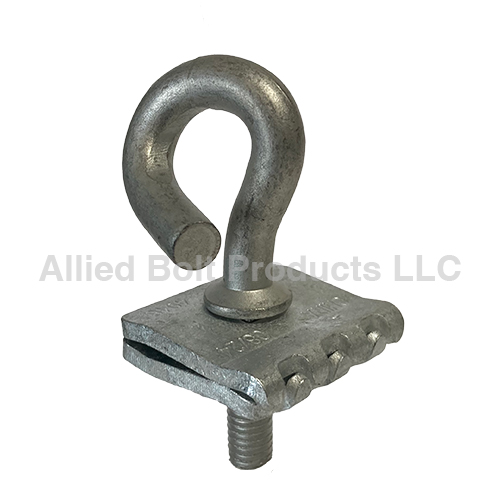

Allied Bolt - PART# 4046

• Used to drop cable installations as an attachment to figure 8 cable for accepting the bail of Drop Wire Clamps.

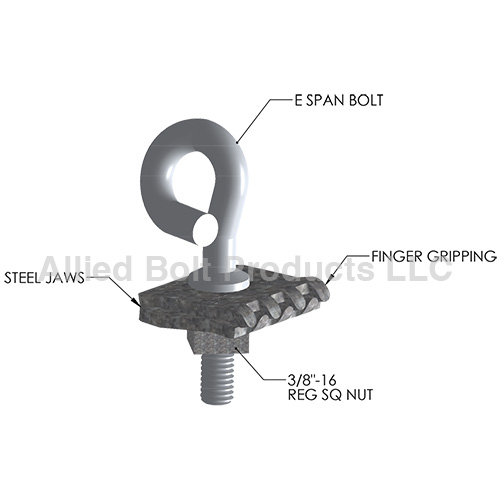

• Clamp is comprised of a pigtail bolt, two finger jaws, and a square nut.
• Bolt and nut are formed from Grade 2 Steel.
• Jaws are rolled and stamped from 1018 tempered Steel.
• Jaw fingers provide exceptional gripping power to clamp without touching web.
• Functions with self-support cable and bare strand.
• Bolt and nut are hot dip galvanized to meet ASTM Specification A153.
• Jaws are mechanically galvanized to meet ASTM Specification B695.

Standard Packaging Information
