• Allied Bolt Suggest Best Practices/installations notes:

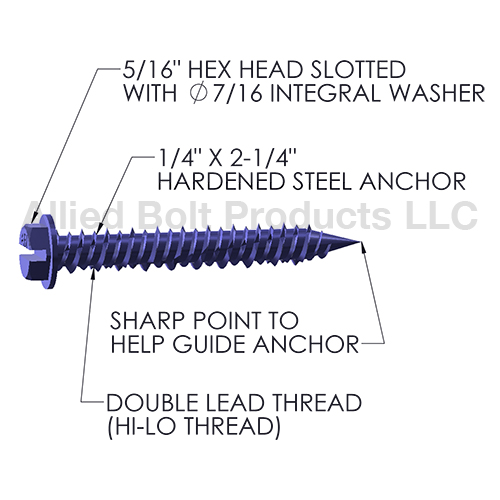

1/4" X 2-1/4" B STEEL ANCHOR

    • Used for making medium weight (under 250 lbs.) attachments such as cable clamps, ground blocks, terminals, ONI’s, protectors, etc. to concrete, hollow block, solid block, and brick.
    • B Steel Anchors cut mounting threads in masonry.
    • Can be removed for adjustment, then re-driven into the same hole.
    • Nail point to help guide anchor.
    • Standard head style is with a slotted hex washer.
    • Manufactured from AISI 1022 Hardened Steel.
    • Epoxy resin coating meets ASTM B117.
    • Each box of 100 comes equipped with one 3/16" x 4-1/2" drill bit.

Standard Packaging Information
