• Allied Bolt Suggest Best Practices/installations notes:

3/8" SHORT LAG SHIELD

    • used in conjunction with lag screws for attaching cable clamps, terminals, lock boxes, etc. to concrete, hollow block, and brick.
    • consists of two zamac alloy sleeves which are held together by interlocking tabs.
    • tapered rings provide additional holding power in softer base materials.
    • hole size is 5/8".
    • minimum embedment is 1-3/4".
    • internal threads to mate with lag screw threads.
    • manufactured from rustproof zinc alloy.
    • used for hard masonry.


Standard Packaging Information

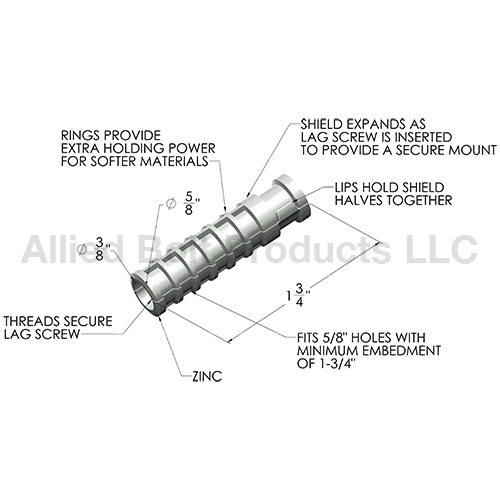

schematic
