• Allied Bolt Suggest Best Practices/installations notes:

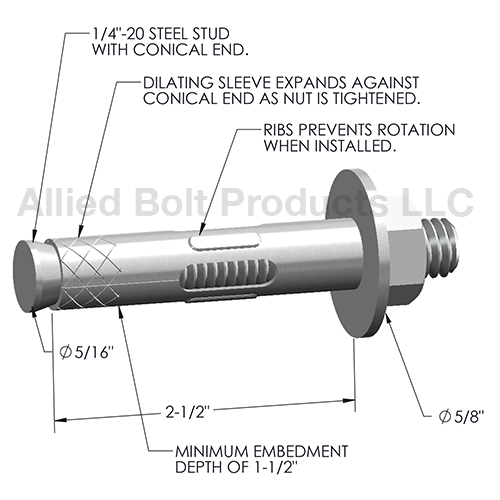

5/16" X 2-1/2" HEX SLEEVE ANCHOR

    • Used for making heavy-duty attachments in solid concrete, hollow block, and brick.
    • Sleeve anchors consist of a threaded plow bolt which has a cone shaped end. tubular expansion sleeves are assembled over plow bolt and butted against cone.
    • Minimum embedment is 1-1/2".
    • Drill size is 5/16".
    • Installation does not require an exact hole depth.
    • Can easily be removed or reinstalled.
    • Torque controlled expansion for quick setting.
    • Anti-rotation ribs and sleeve slots provide spin free installation.
    • Steel sleeve anchors are stamped for AISI 1008 Steel and are zinc plated per ASTM Specification F1941.


Standard Packaging Information

schematic
