• Allied Bolt Suggest Best Practices/installations notes:

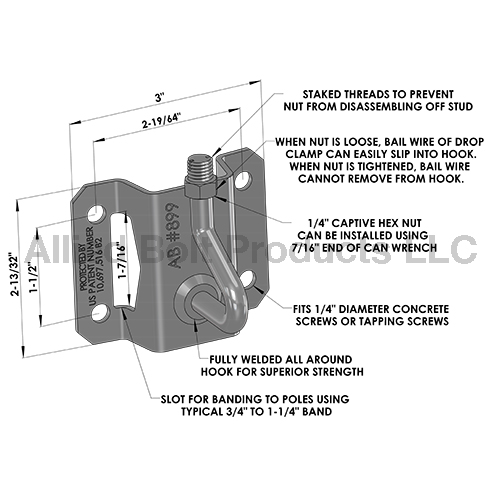

FIBER OPTIC UNIVERSAL DROP ATTACHMENT BRACKET

    • Fiber Optic Universal Drop Attachment Brackets are used to accept the tail wire of Drop Wire Clamps without "springing" off hook during installations of fiber cable.
    • Can support a 1,200 lb load without hook bending or deflecting.
    • Can be banded to poles using up to 1-1/4" band, or fastened to wood poles or residences with 1/4" diameter tapping screws, concrete screws, or lag screws.
    • Hot Dip Galvanized to meet ASTM Specification F2329.
    • Protected by US Patent Number 10,697,516 B2.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
899 FIBER OPTIC UNIVERSAL DROP ATTACHMENT BRACKET 50 1 13

schematic
