• Allied Bolt Suggest Best Practices/installations notes:


    • Used in lieu of a standard Rock Anchor for installations at depths greater than 96".

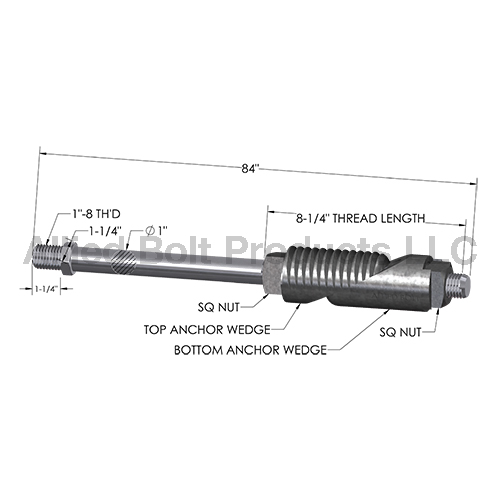

    • Anchor consists of two Malleable castings, a double-end threaded Anchor Rod, and a Square Nut.
    • All components are hot dip galvanized to meet ASTM Specification A153.
    • Anchor can be extended to greater depths by adding a 1" Coupling Nut (Part Number 5053) and additional Anchor Rods along with an Eye Nut. .
    • Anchor diameter is 2-1/4".
    • Hole diameter is 2-3/8".
    • The harder the pull on the rod, the tighter it wedges into the rock.
    • Ultimate strength is 36,000 lbs.

Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
55513 1" x 84" EXTENDABLE ROCK ANCHOR 1 1 26
