Allied Bolt - PART# 24GAB

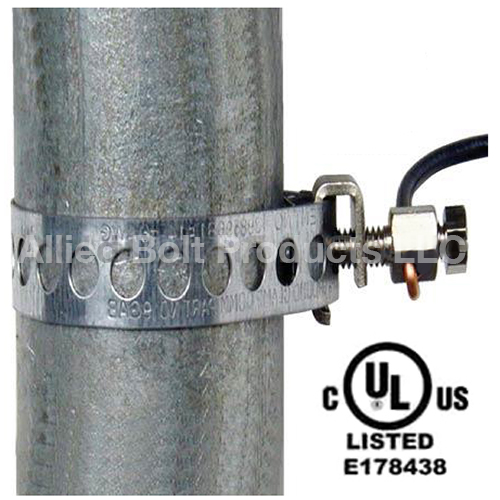

• Provides a permanent connection between a copper water pipe or power service mast and a #17 to #6 AWG ground wire.
• Unique patented design eliminates the need to remove any hardware for installation.
• Raised projections on Strap help penetrate paint and corrosion to form a metal to metal bond. These raised projections eliminate the time consuming task of sanding the surface of the electrode before installing Strap.
• Tab (flapper) is formed with two thicknesses of material, at the end of the Strap, to protect electrode from being punctured during installation.

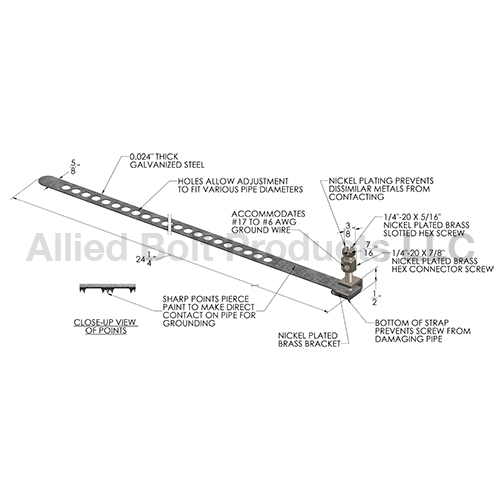

• Strap is stamped from 5/8" x .024" material stock. By using a larger stock size, Premium Ground Straps provide more surface contact for better conductivity.
• Galvanized Straps are manufactured from G90 Pre-galvanized Steel.
• Hardware is manufactured from pure brass. Hardware for galvanized straps is nickel plated to prevent dissimilar metals from contacting each other.
• UL Listed under file number E178438.
• Ground Straps are protected by U.S. Patent 6,398,596.

Standard Packaging Information
