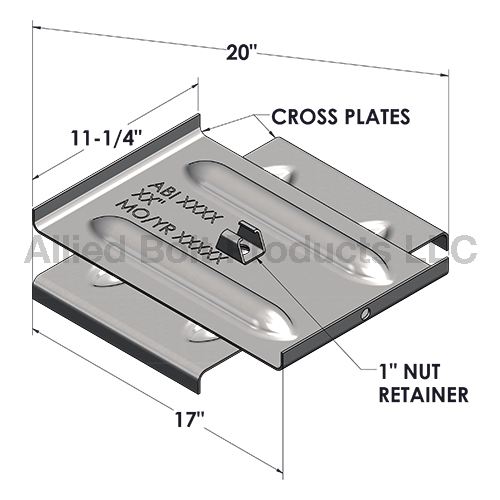

• Anchor is comprised of 2 stamped plates that are welded together.
• Each plate has reinforcing ribs for extra strength.
• A nut retainer is welded to the bottom plate for accepting the Heavy Square Nuts of Anchor Rods.
• Designed for use in holes made by power augers.
• Holding power of the anchor is not affected by size of the hole.
• Can be installed using the same auger used for the pole itself.
• The anchor is installed in a diagonally bored hole so that the anchor is at a right angle to the guy.
• Hot Dip Galvanized to meet ASTM specification F2329.
• Holding strength per soil class:
• Soil Class 3: 34000 lbs
• Soil Class 4: 29000 lbs
• Soil Class 5: 24000 lbs
• Soil Class 6: 19000 lbs
• Soil Class 7: 14000 lbs
• Made in USA.
