• Allied Bolt Suggest Best Practices/installations notes:

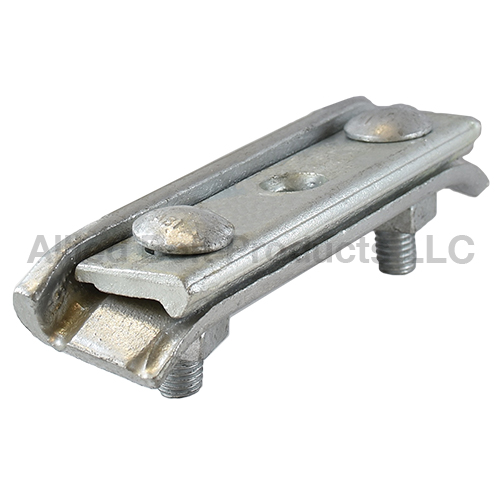

ANGLE SUSPENSION CLAMP FOR 5/8" THRU BOLTS MADE IN USA


    • Used for attaching strand to corner poles.
    • Accepts 1/4" (6.6m) to 7/16" (16m) strand.

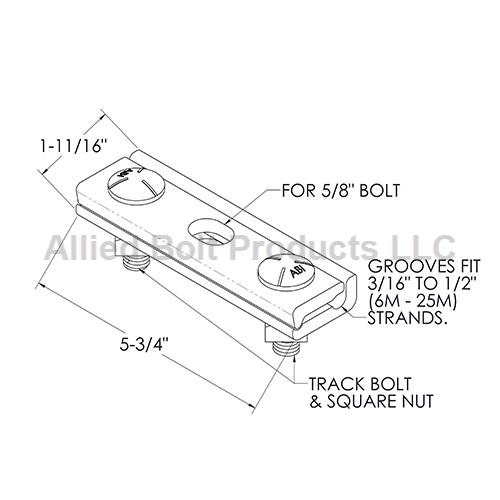

    • Clamp consists of two mating plates, two 5/8"-11 track bolts with attached square nuts.
    • Clamp plates are 1-11/16" wide and 7-1/4" long.
    • One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial projecting lip to retain the strand in the grooves.
    • The center hole on the Corner Suspension Clamp is for use with a 5/8" diameter bolt.
    • CATV Corner Suspension Clamps are for use with a 5/8" diameter bolt.
    • Hot dip galvanized to meet ASTM Specification A153.
    • Made in USA.


Standard Packaging Information
Part # Description Pkg Qty Pkg Per Carton Carton Weight
76320 ANGLE SUSPENSION CLAMP FOR 5/8" THRU BOLTS MADE IN USA 10 1 21
