• Offers excellent holding power with minimal soil disturbance.

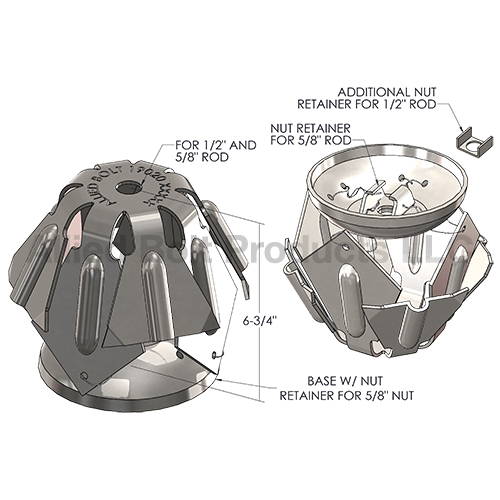

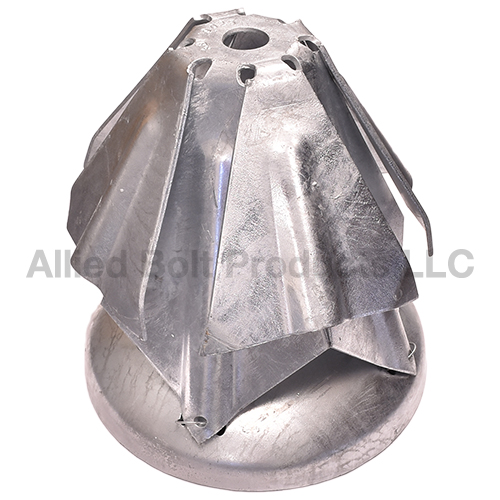

• A two piece assembly that consists of a curved base plate and an integral unit with eight expanding blades.
• The anchor is hot dip galvanized to meet ASTM specifications F2329.
• Formed metal cavity on the underside of the curved base unit accepts the nut of the guy rod when assembling the anchor.
• The blades expand in a lateral motion by forcing the curved blades against the curved base.
• Anchor is for 6" diameter hole.
• Manufactured from AISI 1018 Steel.
• Holding strength per soil class:
• Made in USA.
• Origin: Olathe, KS

Standard Packaging Information
