• Allied Bolt Suggest Best Practices/installations notes:
36" SQUARE SHANK MULTI HELIX ANCHOR WITH 8" AND 10" HELICES MADE IN USA

    • Installation is performed by applying force to an extension that is engaged with the Multi Helix Anchor.
    • All Multi-Helix Anchors have a 1-1/2" diameter square shaft.
    • Anchor has a hole drilled in top of shank for engaging bolt of extension.
    • Multi-Helix Anchors are hot dip galvanized to meet ASTM Specification A123.
    • Multi-Helix Anchors have a typical working torque of 5,000 ft. lbs.
    • They are rated at 7,000 lbs.
    • Made in USA.


Standard Packaging Information
Part # Description Pkg Qty Pkg Per Carton Carton Weight
76201 36" SQUARE SHANK MULTI HELIX ANCHOR WITH 8" AND 10" HELICES MADE IN USA 1 1 46

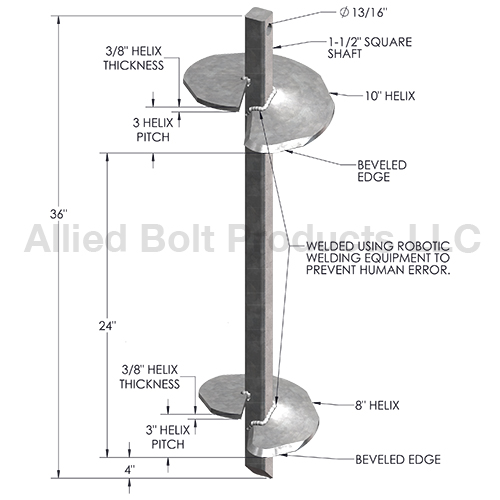

schematic
