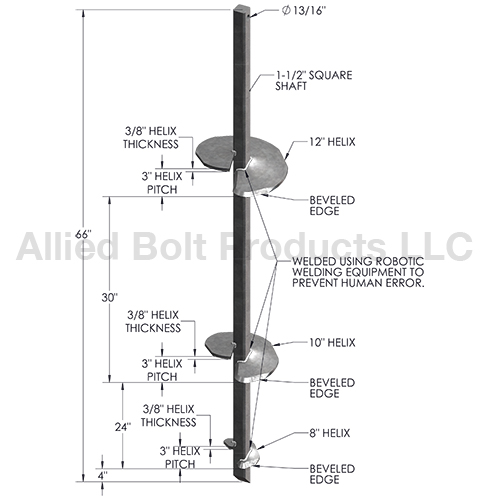

66" SQUARE SHANK MULTI HELIX ANCHOR WITH 8", 10", AND 12' HELICES MADE IN USA
- Installation is performed by applying force to an extension that is engaged with the Multi Helix Anchor.
- All Multi-Helix Anchors have a 1-1/2" diameter square shaft.
- Anchor has a hole drilled in top of shank for engaging bolt of extension.
- Multi-Helix Anchors are hot dip galvanized to meet ASTM Specification A123.
- Multi-Helix Anchors have a typical working torque of 5,000 ft. lbs.
- They are rated at 7,000 lbs.
- Made in USA.
Standard Packaging Information
| Part # |
Description |
Pkg Qty |
Pkg Per Carton |
Carton Weight |
|
76203 |
66" SQUARE SHANK MULTI HELIX ANCHOR WITH 8", 10", AND 12' HELICES MADE IN USA |
1 |
1 |
65 |
