• Allied Bolt Suggest Best Practices/installations notes:

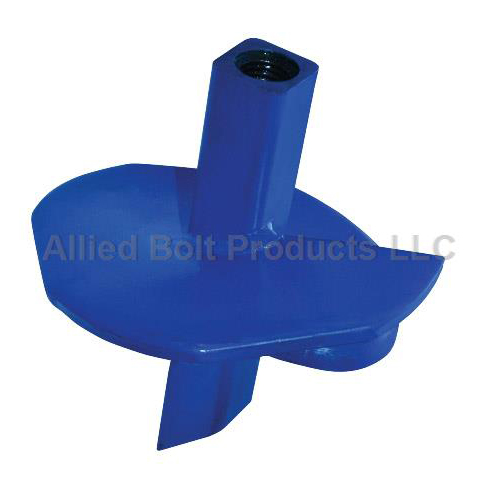

8" SINGLE HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 8000LB FOR 3/4" & 1" RODS MADE IN USA

    • Installation is performed using a power digger. An anchor wrench fits over the square hub and a torque measurement device is required to determine proper installation.
    • Correct installation is achieved only when the anchor is installed using the appropriate torque for the particular soil and anchor type (see reference charts).
    • Proper anchor selection depends on the type of soil and guying requirements.
    • Installation torque is usually measured using a device connected in series with the wrench, digger, and Kelly Bar during installation.
    • Holding strength per soil class with 3/4" rod:
      • Soil Class 2: 30000 lbs (Limited by rod strength)
      • Soil Class 3: 23000 lbs
      • Soil Class 4: 16000 lbs
      • Soil Class 5: 12000 lbs
      • Soil Class 6: 9000 lbs
      • Soil Class 7: 6000 lbs
    • Holding strength per soil class with 1" rod:
      • Soil Class 2: 30000 lbs
      • Soil Class 3: 23000 lbs
      • Soil Class 4: 16000 lbs
      • Soil Class 5: 12000 lbs
      • Soil Class 6: 9000 lbs
      • Soil Class 7: 6000 lbs
    • Made in USA.


Standard Packaging Information
Part # Description Pkg Qty Pkg Per Carton Carton Weight
76133 8" SINGLE HELIX POWER DRIVEN ANCHOR 1-1/2" HUB 8000LB FOR 3/4" & 1" RODS MADE IN USA 6 1 69

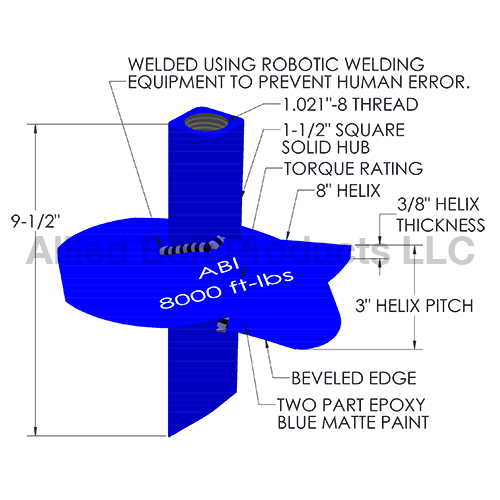

schematic
