• Allied Bolt Suggest Best Practices/installations notes:

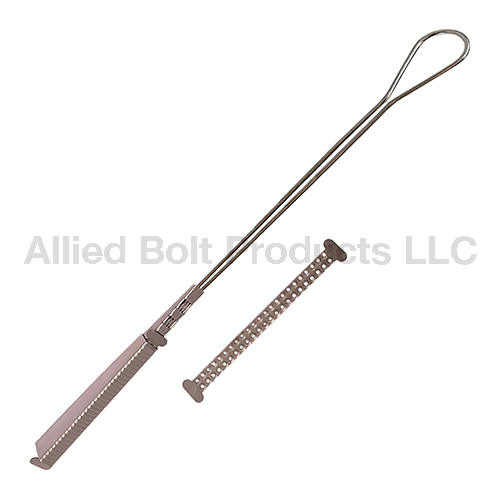

UNIVERSAL DROP WIRE CLAMP MADE IN USA

    • An optimized three-piece clamp designed to support Corning’s SST™ Fiber Drop Cable, and Roc™ Fiber Drop Cable, as well as similar cables produced by other manufacturers. The clamp is also designed to support 1-2 Twisted Pair Drop Cables.
    • The clamp is rated to support Fiber Drop Cables to a maximum of 400lbs with minimal attenuation and 1-2 Twisted Pair Drop Cable up to 550lbs.
    • Shell, Wedge and Shim are stamped from #304 Stainless Steel. The Tail Wire is formed from deadsoft #430 Stainless Steel.
    • Elongated clamp provides compression over a greater surface area.
    • Perforations on the shim compress the support members of the fiber cable without causing attenuation of the fiber.
    • Patent pending.
    • Made in USA.






Standard Packaging Information
Part # Description Pkg Qty Pkg Per Carton Carton Weight
76923 UNIVERSAL DROP WIRE CLAMP MADE IN USA 25 20 47

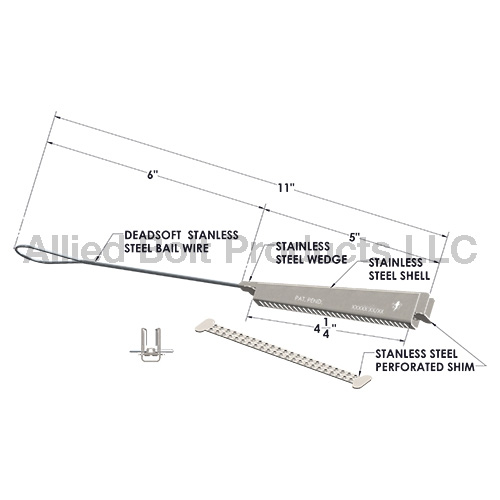

schematic
