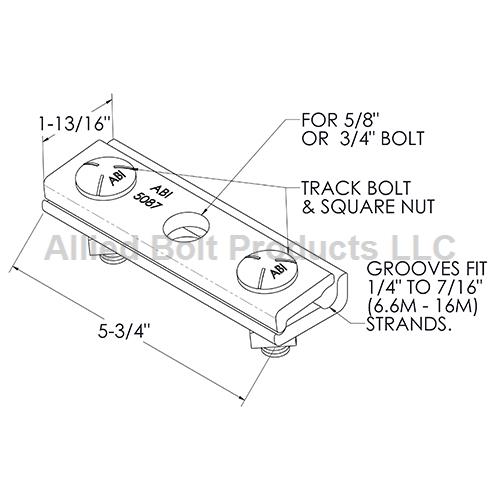

THREE BOLT CABLE SUSPENSION CLAMP FOR 3/4" THRU BOLTS

    • Used to attach strand to straight line poles.
    • Accepts 1/4" (6.6M) to 7/16" (16M) strand.
    • Consists of two plates,and two 1/2"-13 track bolts with attached square nuts.
    • Plates are 1-13/16" wide and 5-3/4" long.
    • The center hole accepts 5/8" or 3/4" thru bolt.
    • Hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
5087 THREE BOLT CABLE SUSPENSION CLAMP FOR 3/4" THRU BOLTS 25 1 47

schematic
