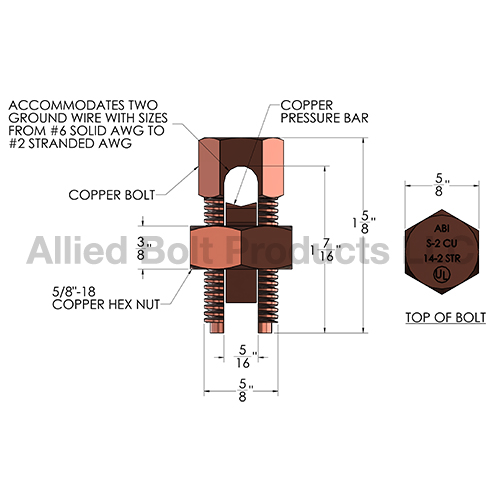

Allied Bolt - PART# 852

• Used to make a bonding connection between two copper ground wires.
• Bolt and nut formed from high-strength corrosion resistant C210 Copper.
• Specially designed pressure bar provides high pull-out strength.
• Under torque, provides high contact pressure between ground wires.
• Smallest two conductors accepted: 6 Sol.
• Largest two conductors accepted: 2 Str.
• Min. wire size that can be used with Max. wire size: 14 Str.
• UL listed file under number E479014.

Standard Packaging Information
