• Allied Bolt Suggest Best Practices/installations notes:

#4 ALUMINUM CONDUCTOR SPLICE ORANGE

    • Used to splice Aluminum Conductors in overhead construction.
    • Both shell and jaws are manufactured from high-strength Aluminum.
    • Color coded ends provide easy identification.
    • Funnel ends allow for easy insertion.
    • Full tension.
    • Color code: Orange.
    • Conductor Size:
      • ACSR 4
      • AAAC 4
      • AAC 4
    • Approximate Conductor O.D.
      • Min./Max in .220" - .250"
      • Min./Max. mm 5.58 - 6.35


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
AB40200 #4 ALUMINUM CONDUCTOR SPLICE ORANGE 50 1 6

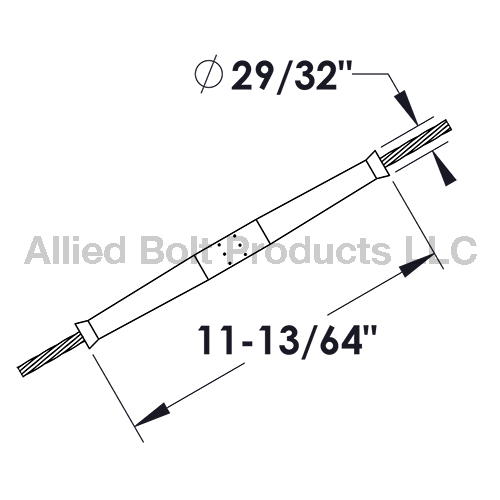

schematic
