• Allied Bolt Suggest Best Practices/installations notes:

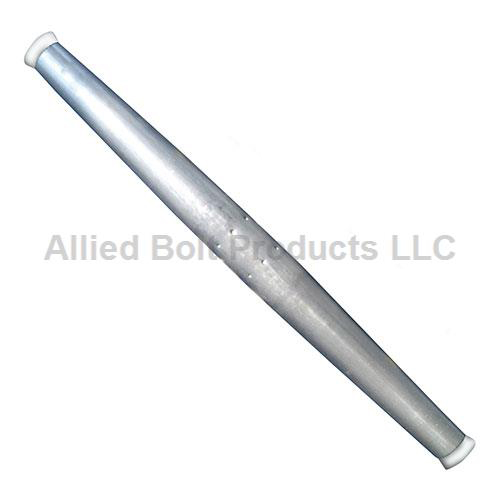

477 (18/1) ALUMINUM CONDUCTOR SPLICE WHITE

    • Used to splice Aluminum Conductors in overhead construction.
    • Both shell and jaws are manufactured from high-strength Aluminum.
    • Color coded ends provide easy identification.
    • Funnel ends allow for easy insertion.
    • Full tension.
    • Color code: White.
    • Conductor Size:
      • ACSR 477 (18/1)
      • AAAC 559.5
      • AAC 556.5, 500
    • Approximate Conductor O.D.
      • Min./Max in .780" - .858"
      • Min./Max. mm 19.81 - 21.79


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
AB41300 477 (18/1) ALUMINUM CONDUCTOR SPLICE WHITE 20 1 56

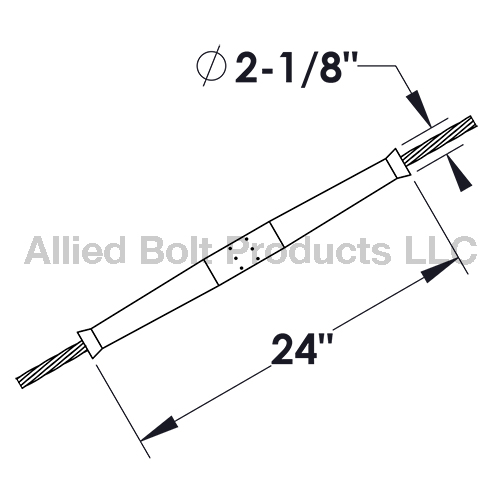

schematic
