• Allied Bolt Suggest Best Practices/installations notes:

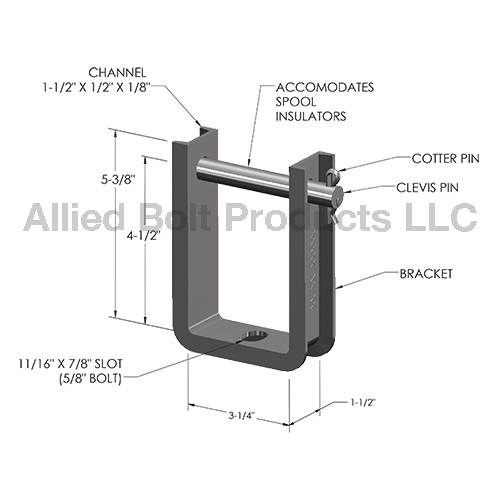

CHANNEL BRACKET CLEVIS WITHOUT SPOOL INSULATOR

    • A steel channel bracket used in conjunction with Spool Insulators to terminate open wires.
    • Channel bracket is mounted to poles with a 5/8" Thru Bolt.
    • Channel bracket is 1-1/2" wide x 1/2" high x 1/8" thick.
    • Consists of a ‘U’ shaped channel bracket with a 5/16” Steel pin and cotter pin.
    • All Steel components are hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
8474 CHANNEL BRACKET CLEVIS WITHOUT SPOOL INSULATOR 10 1 18

schematic
