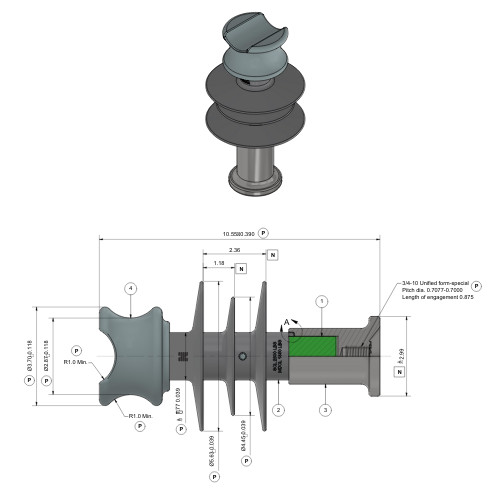

Composite Line Post Insulator, 15kV, 51-1F Porc
- 15kV ANSI Class 51-1F Composite Line Post Insulator with HTV silicone housing, porcelain F-neck and stud base end fittings.
- Composite Line Post Insulators offer specific advantages including:
- Enhanced reliability in contaminated environments including salt spray and agricultural/industrial pollution zones.
- Lightweight for easy handling and installation, reducing time and labor costs.
- Reduced maintenance, contaminants are naturally washed away with the rainfall.
- Additional Information:
- Category: Line Post Insulators
- Sub Category: F-Neck Tie Top
- Typical Application Voltage (kV): 15kV
- Leakage (in): 15.75
- ANSI Class: 51-1F
- Section Length (in): 10.5
- SML (lbs): 2800
- STL (lbs): 2000
- Nominal Thread Hole: 3/4"-10
- Download PDF Datasheet Here
Standard Packaging Information
| Part # |
Description |
Pkg Qty |
Pkg Per Carton |
Carton Weight |
|
NCLP0151FP |
Composite Line Post Insulator, 15kV, 51-1F Porc |
6 |
1 |
33 |
