• Allied Bolt Suggest Best Practices/installations notes:

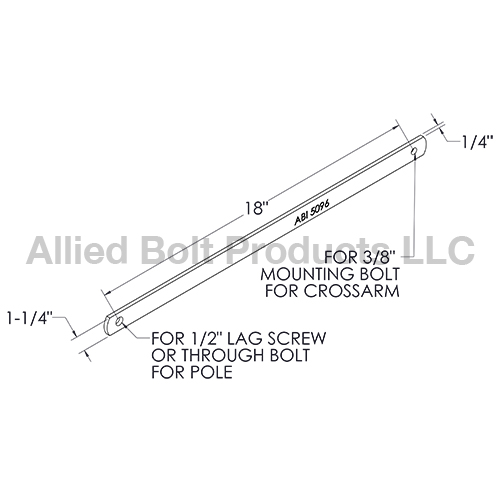

20" CROSSARM BRACE

    • Used in pairs as a means of aligning and supporting crossarms.
    • Hole centers are 1" from brace ends.
    • The diameters of the mounting holes are 7/16" and 9/16".
    • The distance between mounting holes is 18".
    • Stamped from AISI 1018 Steel.
    • Hot dip galvanized to meet ASTM Specification F2329.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
5096 20" CROSSARM BRACE 20 1 46

schematic
