• Allied Bolt Suggest Best Practices/installations notes:

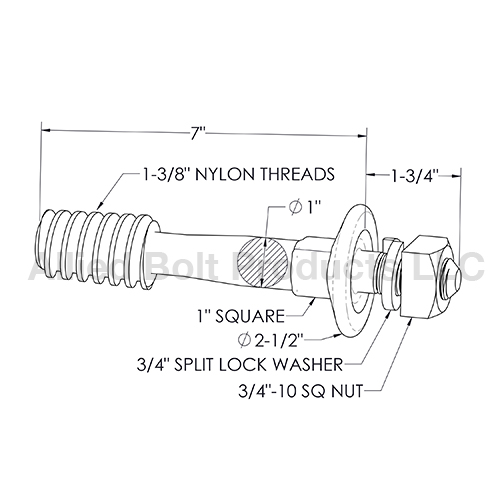

3/4" x 7" x 1-3/4" HIGH VOLTAGE 1-3/8" NYLON THREAD CROSSARM PIN

    • Pins are used to mount spindle threaded insulators directly on crossarms.
    • Pins are forged from one piece hearth steel.
    • Broad base diameter distributes load without damaging crossarms.
    • Provided with nylon threads to be environmentally friendly.
    • Pin and components are hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
2724 3/4" x 7" x 1-3/4" HIGH VOLTAGE 1-3/8" NYLON THREAD CROSSARM PIN 25 1 50

schematic
