• Allied Bolt Suggest Best Practices/installations notes:

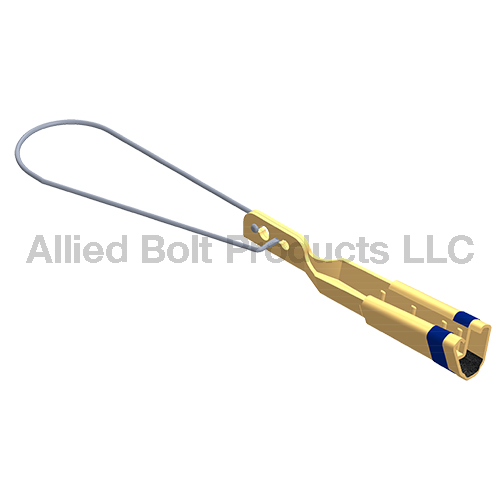

MEDIUM (1/0- #4) WEDGE CLAMP W/ IRRIDITE

    • Service Wedge Clamps are used for low-tension dead-ending of ACSR, AAAC, and Aluminum Conductors.
    • Wedge Clamps shells have a pre-adhered grit to strengthen hold on conductor.
    • Allied Bolt Wedge Clamps feature a notch in the bail wire to prevent the bail from disassembling after installation.
    • All Wedge Clamps are formed from high-strength T2024 Aluminum.
    • Bail wire is 6-1/2" long and is formed from Type 304 Stainless Steel.
    • Ultimate strength is 1,200 lbs.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
10077 MEDIUM (1/0- #4) WEDGE CLAMP W/ IRRIDITE 50 1 13

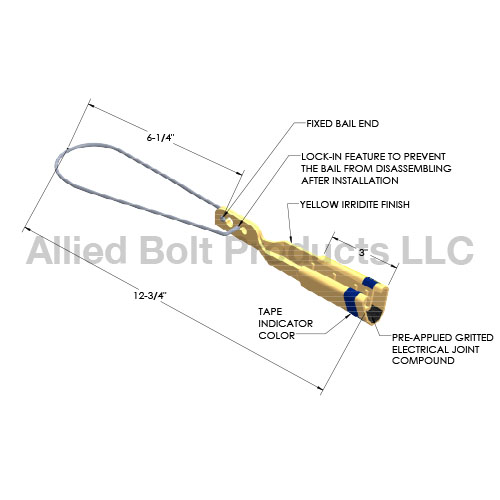

schematic
