• Allied Bolt Suggest Best Practices/installations notes:

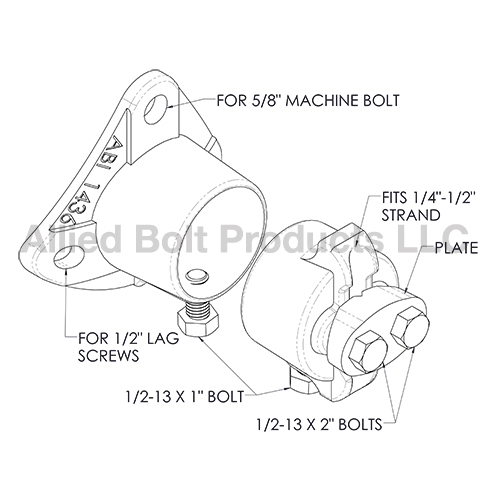

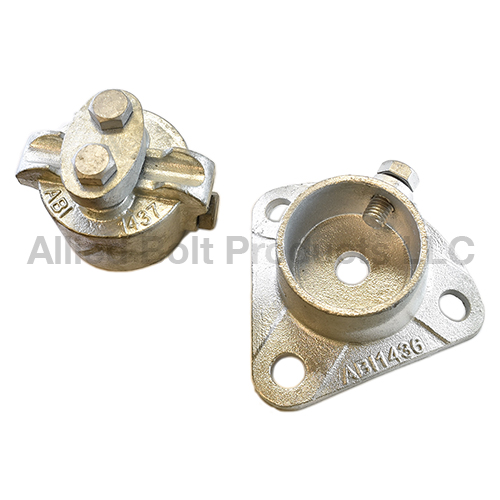

POLE PLATE AND END FITTING FOR 2" PIPE KIT

    • These Malleable Iron fittings are used with standard pipe near sidewalks and buildings where there is insufficient space for standard guying and where head clearance must be maintained.
    • Pole Plates consist of a Malleable Iron fitting, and a 1/2" x 1" bolt.
    • Pole Plates are provided with a curved flange and 9/16" mounting holes.
    • End Fitting for 2" pipe is provided with two malleable castings, two 1/2" x 2" Hex Bolts and one 1/2" x 1" Hex Bolt.
    • End Fitting for 2-1/2" pipe is provided with a 5/8" x 2-1/2" Track Bolt, and requires a Guy Clamp for installation.
    • All components are hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
1429 POLE PLATE AND END FITTING FOR 2" PIPE KIT 1 1 5

schematic
