• Allied Bolt Suggest Best Practices/installations notes:

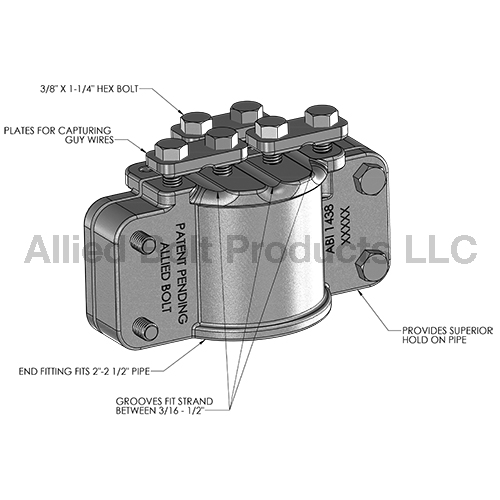

TRIPLE SIDEWALK END FITTING FOR 2-1/2" PIPE

    • These Malleable Iron fittings are used with standard pipe near sidewalks and buildings where there is insufficient space for standard guying and where head clearance must be maintained. Allied Bolt's Triple Sidewalk End fittings provide a superior hold on pipe compared to end fittings that are only secured by a headed set screw.
    • End fitting accommodates 2" and 2-1/2" pipe (Sold separately).
    • End fitting is comprised of two mating castings and three plates to capture guy wires.
    • Accommodates up to three guy wires.
    • All components are hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
1438 TRIPLE SIDEWALK END FITTING FOR 2-1/2" PIPE 5 1 39

schematic
