• Allied Bolt Suggest Best Practices/installations notes:

5/8" X 14" SINGLE UPSET SPOOL BOLT HDG

    • Spool Bolts are used in conjunction with spool insulators for side of pole installation.
    • Collars are forged instead or welded for superior strength.
    • Tensile Strength is 13,550 lbs.
    • Recommended torque value is 15 ft lb.
    • Minimum thread length is 4".
    • Spool Bolts are equipped with a 5/8" Round Washer, 5/8" Regular Square Nut, and a Cotter Pin on one side.The other side is equipped with a 5/8" Concave Square Locknut and Regular Square Nut.
    • Spool Bolt conforms to ANSI C135.31. Spool Bolt can support a minimum load of 1900 lbs at 10 degree deflection.
    • All components are hot dip galvanized to meet ASTM Specification F2329.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
1715 5/8" X 14" SINGLE UPSET SPOOL BOLT HDG 10 1 24

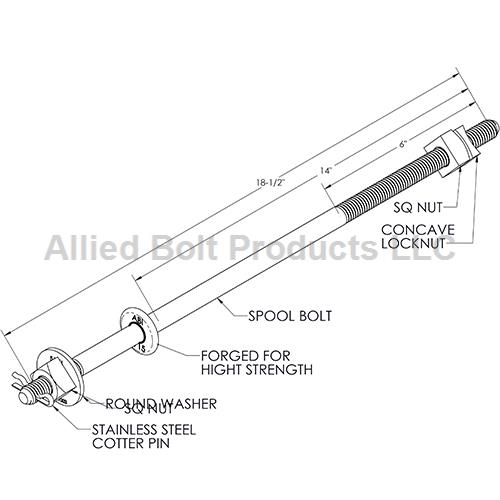

schematic
