• Allied Bolt Suggest Best Practices/installations notes:

3-1/4" X 5" INSULATED SWINGING CLEVIS

    • Used to support ANSI 53-2 and 53-3 Spool Insulators on Utility Poles.
    • Mounts to poles with a 5/8” Machine Bolt.
    • Insulator can be removed without removing Clevis from pole.
    • Manufactured from AISI 1018 Steel.
    • Hot dip galvanized to meet ASTM Specification A 153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
8480 3-1/4" X 5" INSULATED SWINGING CLEVIS 10 1 16

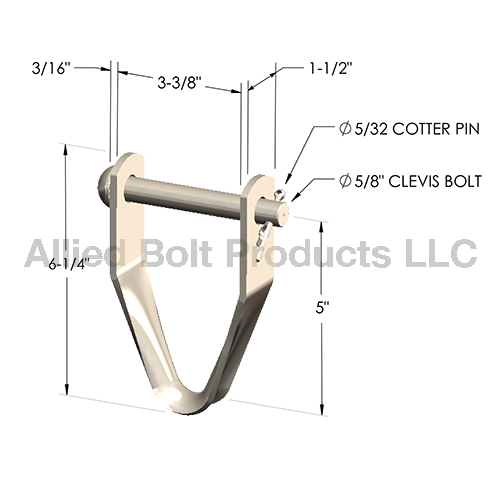

schematic
