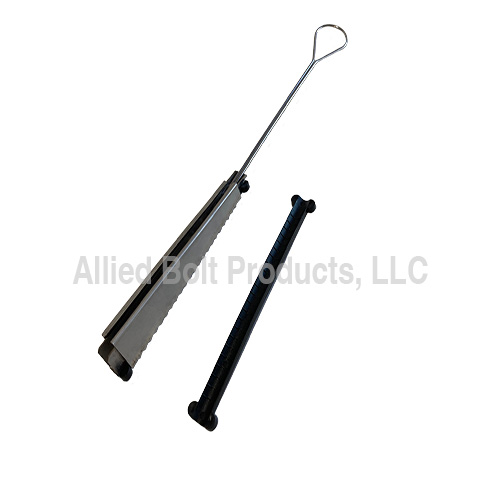

DROP CLAMP FOR ROUND FIBER OPTIC CABLE

    • An optimized three-piece clamp designed to support Round Fiber Drop Cables, as well as similar cables produced by other manufacturers. The clamp is also designed to support 4.5mm to 6.6mm Diameter Drop Cables.
    • The clamp is rated to support Fiber Drop Cables to a maximum of 300 Ibs.
    • Shell and Wedge are stamped from #304 Stainless Steel. The Tail Wire is formed from deadsoft #430 Stainless Steel.
    • Clamp has a polystyrene (non-metallic) shim.
    • Elongated clamp provides compression over a greater surface area.
    • Ribs on the shim compress the support members of the fiber cable without causing attenuation of the fiber.
    • Patent pending.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
904 DROP CLAMP FOR ROUND FIBER OPTIC CABLE 25 20 47

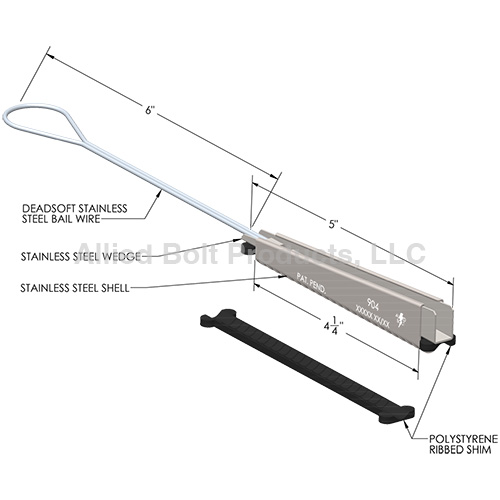

schematic
