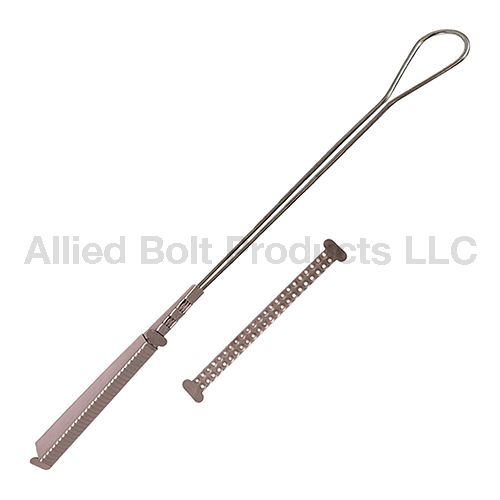

UNIVERSAL THREE PIECE FIBER DROP CLAMP

    • An optimized three-piece clamp designed to support Corning’s SST™ Fiber Drop Cable, and Roc™ Fiber Drop Cable, as well as similar cables produced by other manufacturers. The clamp is also designed to support 1-2 Twisted Pair Drop Cables.
    • The clamp is rated to support Fiber Drop Cables to a maximum of 400lbs with minimal attenuation and 1-2 Twisted Pair Drop Cable up to 550lbs.
    • Clamp accommodates a fiber cable that is approximately 8.3mm (.325") wide and 4.5mm (.178") thick.
    • Shell, Wedge and Shim are stamped from #304 Stainless Steel. The Tail Wire is formed from deadsoft #430 Stainless Steel.
    • Elongated clamp provides compression over a greater surface area.
    • Perforations on the shim compress the support members of the fiber cable without causing attenuation of the fiber.
    • Patent pending.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
906 UNIVERSAL THREE PIECE FIBER DROP CLAMP 25 20 47

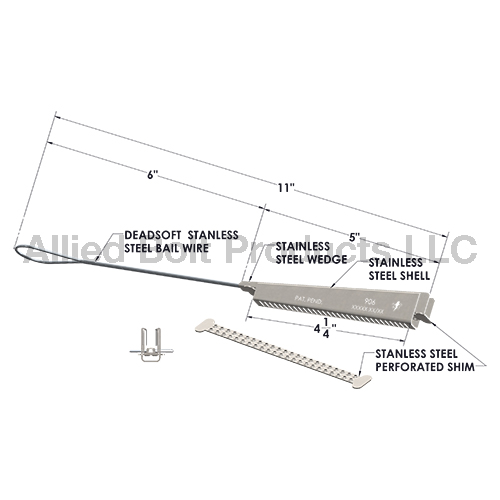

schematic
