• Allied Bolt Suggest Best Practices/installations notes:

3/8" ANGLE SCREW

    • Used with porcelain knobs for accepting the bail of drop wire clamps.
    • Gimlet point penetrates easily into wall, while the machine screw thread at opposite end provides mounting for porcelain knob.
    • Use 3/8" Angle Screws with T knobs.
    • Made from AISI 1008 Steel.
    • Hot dip galvanized to meet ASTM Specification A153.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
442 3/8" ANGLE SCREW 10 4 8

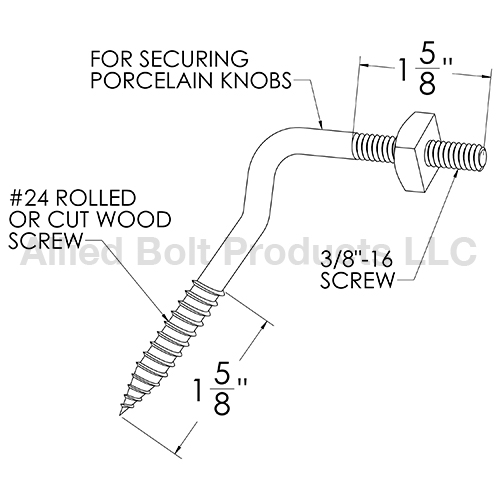

schematic
