• Allied Bolt Suggest Best Practices/installations notes:

SIZE 17B DISTRIBUTION RING

    • Number 17 Distribution Rings are used for wire management as a mount on backboards that are installed in H Type Cable Terminal Sections.
    • The Number 17 Distribution Rings are comprised of a base plate that is welded to an oval loop.
    • After welding, all components are powder coated with Gray Enamel for durability and aesthetics.
    • Mounting hole in base plate is .188" to accommodate a #8 tapping screw.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
9060 SIZE 17B DISTRIBUTION RING 50 1 4

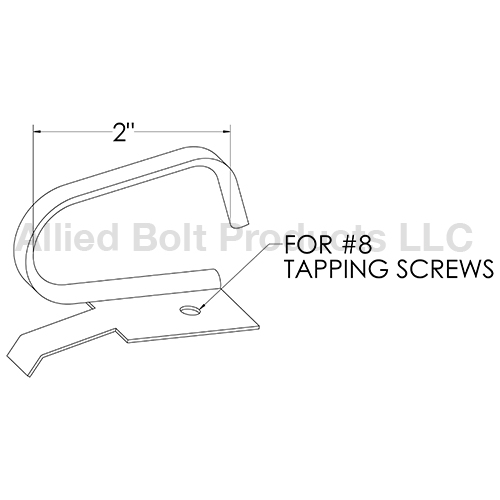

schematic
