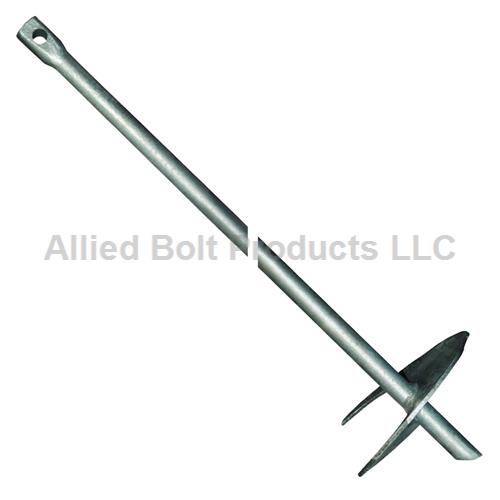

84" SINGLE HELIX ROUND SHANK ANCHOR WITH 10" HELIX 2,300LB RATING
- Installation is performed by applying force to an extension that is engaged with the anchor.

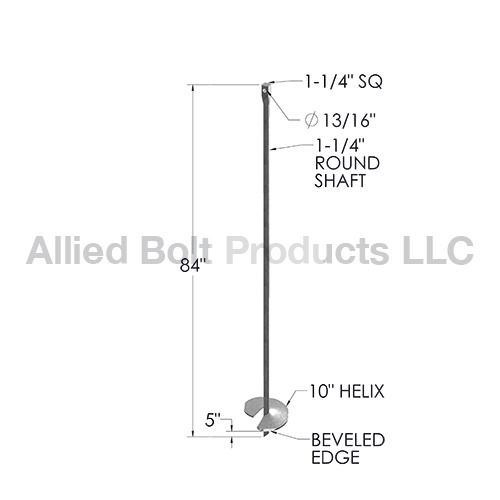

- All Round Shank Multi Helix Anchors have a 1-1/4" round shaft with a 1-1/2" square end for mating with extensions.
- Anchor has a hole drilled in top of shank for engaging bolt of extension.
- Round Shank Multi Helix Anchors have a working torque of 2,300 ft lbs.
- Round Shank Multi Helix Anchors are hot dip galvanized to meet ASTM Specification A123.
- Holding strength per soil class:
- Soil Class 5: 24000 lbs
- Soil Class 6: 21000 lbs
- Soil Class 7: 17000 lbs
Standard Packaging Information
| Part # |
Description |
Pkg Qty |
Pkg Per Carton |
Carton Weight |
|
3584 |
84" SINGLE HELIX ROUND SHANK ANCHOR WITH 10" HELIX 2,300LB RATING |
1 |
1 |
47 |
