• Allied Bolt Suggest Best Practices/installations notes:

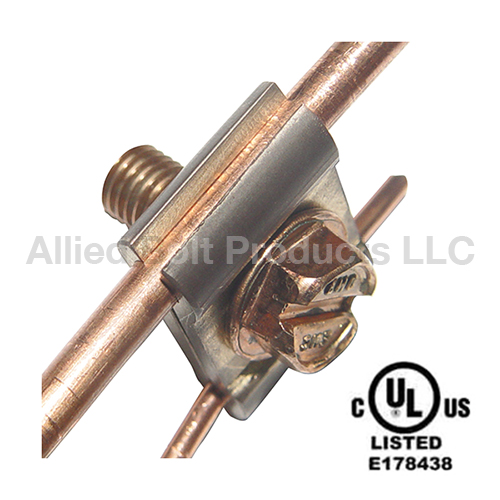

PARALLEL GROOVE BONDING CONNECTOR

    • Bonding Connectors are used to permanently bond a #14, 12, or 10 AWG solid copper ground wire to a #6 AWG solid copper ground wire.
    • The Connector can be installed without disassembly. Simply loosen the Connector, slide over the two ground wires, and tighten.
    • Connector halves are stamped from high-strength Bronze Alloy.
    • Screw (1/4-28 x 1/2" Slotted Hex Washer Machine Screw) is formed from Silicon Bronze.
    • UL Listed under file number E178438.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
1885 PARALLEL GROOVE BONDING CONNECTOR 50 16 58

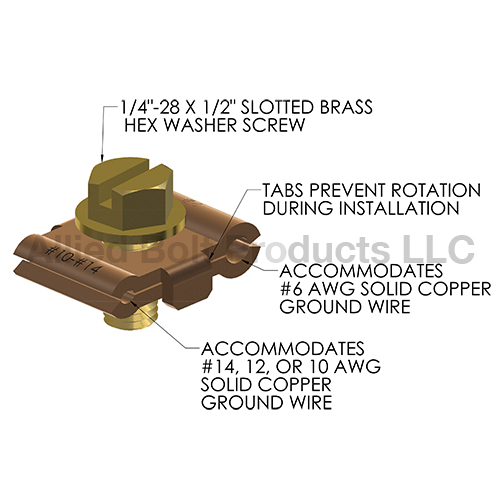

schematic
