• Allied Bolt Suggest Best Practices/installations notes:

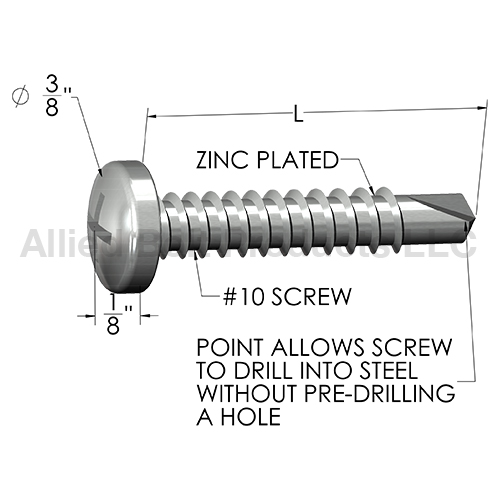

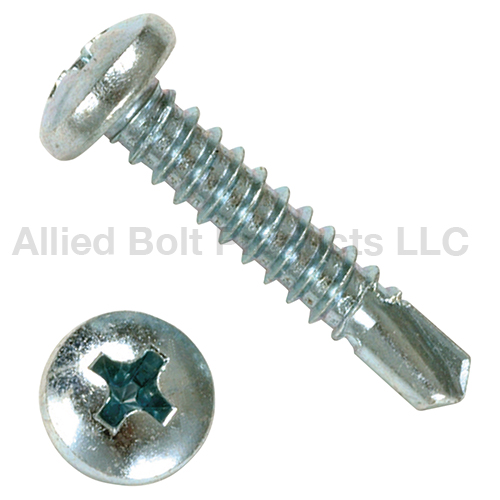

#10 X 1-1/2" PHILLIP PAN HEAD SELF-DRILLING FRAMING SCREW SCREW (TEK) ZINC PLATED

    • Self-Drilling screws are used to “tap” their own mating internal thread when driven into metallic materials. Self Drilling do not require a predrilled hole.
    • Case hardened so surface after tempering ranges from Rockwell Hardness of C52-58.
    • Core hardness after tempering ranges from Rockwell Hardness of C32-40.
    • Zinc plated to meet ASTM Specification F1941.
    • Screws conform to the dimensions of IFI-113.


Standard Packaging Information

Part # Description Pkg Qty Pkg Per Carton Carton Weight
2920 #10 X 1-1/2" PHILLIP PAN HEAD SELF-DRILLING FRAMING SCREW SCREW (TEK) ZINC PLATED 100 16 18

schematic
